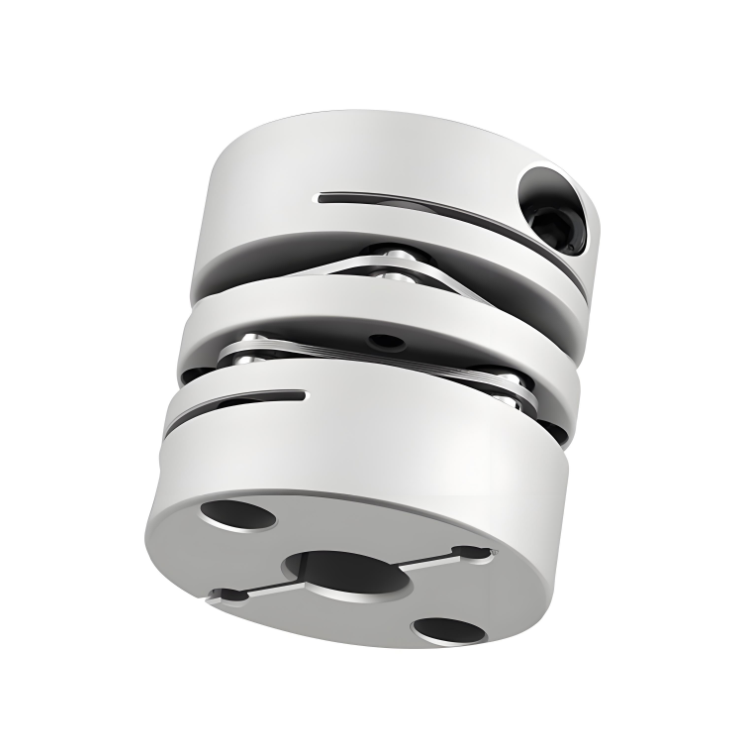

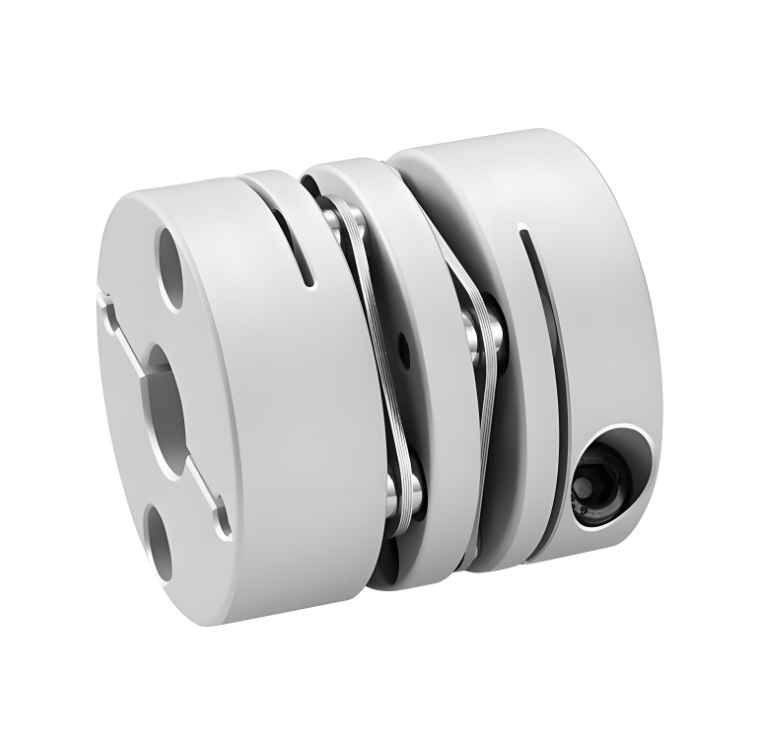

RSK-CPLF Tipe penjepit pendek Diafragma Ganda Paduan Aluminium Fleksibel untuk mesin CNC

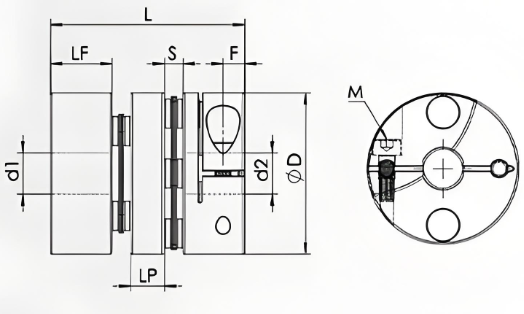

Nama kode

D

L

Diameter Dalam Standar (mm)

E

N

D1

F

H

M

Pengetatan torsi (N.m)

RSK-CPLF

16.6

23

3, 4, 5, 6

3.6

2.2

6.5

3.3

7,5 M2.5 0.

M2.5

0.8

21

24.5

3, 4, 5, 6, 6,35, 7, 8, 9, 9,525, 10

4.7

2.7

10.5

3.3

7.2

M2.5

0.8

28

32.2

5, 6, 6,35, 7, 8, 9, 9,525, 10, 11, 12, 12,7, 14

6.2

3.5

15

3.85

9.5

M3

1.2

34

35

5, 6, 6,35, 7, 8, 9, 9,525, 10, 11, 12, 12,7, 14, 15, 16

7.2

3.7

16.5

4.85

10.2

M4

2.5

46

44

8, 9, 9.525, 10, 11, 12, 12.7, 14, 15, 16, 17, 18, 19, 20, 22, 24, 25

8.4

4.6

25.5

5

13.2

M5

5

55

55

10, 11, 12, 12,7, 14, 15, 16, 17, 18, 19, 20, 22, 24, 25, 28, 30

11.6

5.2

31

6

16.5

M5

5

Nama kode

D

L

Torsi peringkat (Nm)

Izinkan bias (mm)

Izinkan kemiringan (∠°)

Izinkan deviasi aksial (mm)

Izinkan RPM

Kekakuan torsi statis (N.m/rad)

Momen inersia (N.m)

Berat (g)

RSK-CPLF

16.6

23

0.5

0.10

1.0

±0,18

9000

480

4.22x10 ^-7

12

21

24.5

1.0

0.10

1.0

±0,18

8000

750

1.11x10 ^-6

18

28

32.2

1.5

0.15

1.2

±0,18

8000

2500

4.68x10 ^-6

45

34

35

3

0.17

1.5

±0,18

8000

4200

1.1x10 ^-5

70

46

44

9

0.22

1.5

±0,25

8000

11000

3,8x10 ^-5

144

55

55

25

0.25

1.5

±0,25

8000

16500

1.6x10 ^-4

265
